How to use class



A user will encode new modules on 'module Editor' window and will make use of Visual Gene Developer's classes. There is a very simple rule to use a class and its modules. First check grammar!




o Rule



VBScript

Function routine:         Other variable = Class name.function name (parameter1, parameter2, ...)

Sub routine       :         Call Class name.sub name (parameter1, parameter2, ...)

                                  Class name.sub name parameter1, parameter2, ...

Property (reading):      Other variable = Class name.property name (parameter1, parameter2, ...)

Property (writing):      Class name.property name (parameter1, parameter2, ...) = Other variable





JScript

Function routine:         Other variable = Class name.function name (parameter1, parameter2, ...);

Sub routine       :         Call Class name.sub name (parameter1, parameter2, ...);

Property (reading):      Other variable = Class name.property name (parameter1, parameter2, ...);

Property (writing):      Class name.property name (parameter1, parameter2, ...) = Other variable;





Here, parameters can be optional and a user may not distinguish between 'Function routine' and 'Property (reading)'.

Click here to see examples




o Procedure

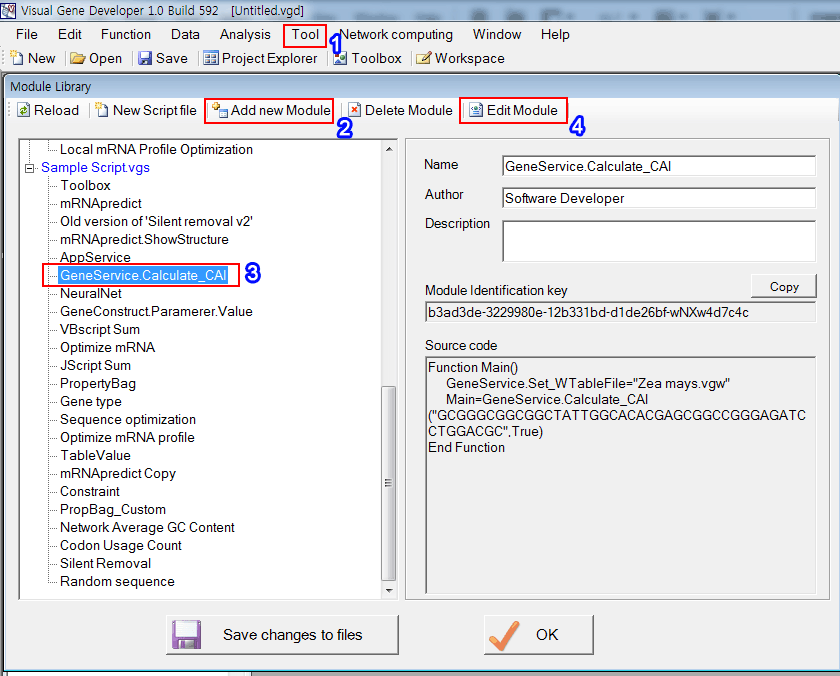

Step 1: Open 'Module Editor'

1. Click 'Module Library' in 'Tool' menu

2. Click 'Add new Module' button

3. Or, choose one of modules

4. And then click 'Edit Module' button.

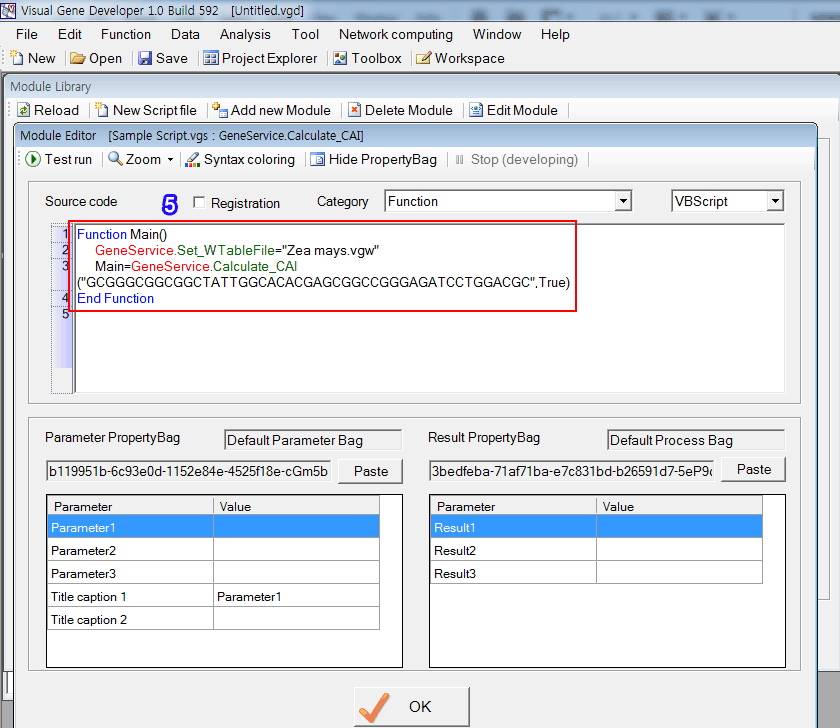

Step 2: Develop module

5. Use classes!



'GeneService' is a class name and 'Set_WTableFile' and 'Calculate_CAI' are module names.
